3-phase spot EURO CUBE 2 L PHASE flat, square, UGR < 19, cardanic IP20, black dimmable

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Lighting with Excellent Color Rendering

The LED 3-phase spotlight EURO CUBE 2 L PHASE from SLV impresses with its outstanding color rendering, featuring a CRI value of over 90. This ensures a natural and vibrant representation of colors, especially when illuminating people or products. With a neutral white light color of 4000K, the spotlight produces a pleasant, clear light that optimally illuminates the surroundings while being easy on the eyes.

Flexible and Precise Light Management

The spotlight is gimbal-mounted and can be both rotated and tilted to precisely align the 40° wide light beam. This allows targeted illumination of objects or surfaces, exactly as needed. Thanks to the phase-cut dimming function, the light intensity can be continuously adjusted, creating the perfect atmosphere and saving energy.

Efficient Technology and Long Service Life

With a power consumption of only 21 watts, the spotlight offers a high luminous efficacy of 133.33 lumens per watt and produces a luminous flux of 2800 lumens. The integrated passive cooling system improves heat dissipation, extending the LED lifespan up to 50,000 hours. This ensures long-lasting and reliable lighting while simultaneously saving energy.

Robust Design and Easy Installation

The housing made of aluminum in elegant black is not only sturdy but also designed with a modern look. Weighing only 0.7 kg, the spotlight can be easily mounted. The scope of delivery includes a 3-phase adapter as well as a power-controlled operating device, facilitating installation on 3-phase tracks. Accessories such as filters or honeycomb filters are available separately to customize the light quality.

Optimal Safety and Versatile Applications

The spotlight meets protection class 2 and is equipped with an IP20 protection rating. The glare control with a UGR value below 19 makes it especially suitable for areas with display screen workstations, as it ensures glare-free lighting. Thanks to its compact dimensions and square design, the spotlight integrates harmoniously into various environments and offers a professional lighting solution.

Colour:
black
Glass color:
clear
Reflector color:
silver

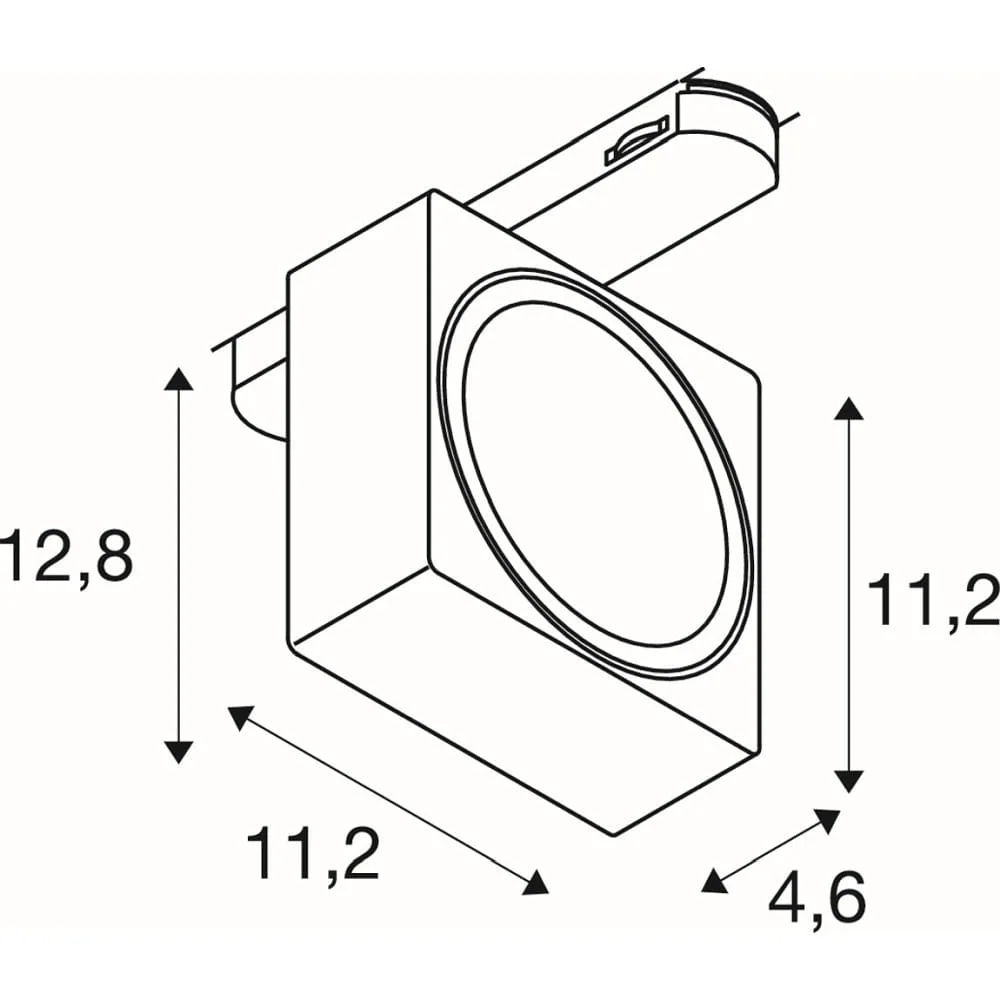

Dimension:
total-B∕ H∕ T: 11,2∕ 14,5∕ 15,8 cm
visible part-B∕ H∕ T: 11,2∕ 11,2∕ 15,8 cm
head-B∕ H∕ T: 11,2∕ 11,2∕ 4,6 cm
light output-Ø: 6,9 cm
adapter-T: 15,8 cm
Material:
aluminium
Weight:
0,7 kg
Product type:
3-phase spot
Accessories:
3-phase adapter - included in delivery
driver - included in delivery
3-phase track - not included in delivery
filter - not included in delivery
honeycomb filter - not included in delivery
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50/60 Hz
Power consumption:
21 W
Emitting angle:
40 °
Voltage:
3-phase adapter
Light colour:
neutral white
Beam direction:
swiveling
Light flux:
2800 lm
Light yield:
133,33 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK02 up to 0.20 Joule
Protection class:
2
IP-protection class:
IP20
Additional information:
Notice for the end user: The light source of this luminaire may only be replaced by the manufacturer or by a service technician appointed by him.
System power: 28,5W
High color reproduction
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
D
Energy consumption:
21 kWh/1.000 h
Article number:
1010851
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
