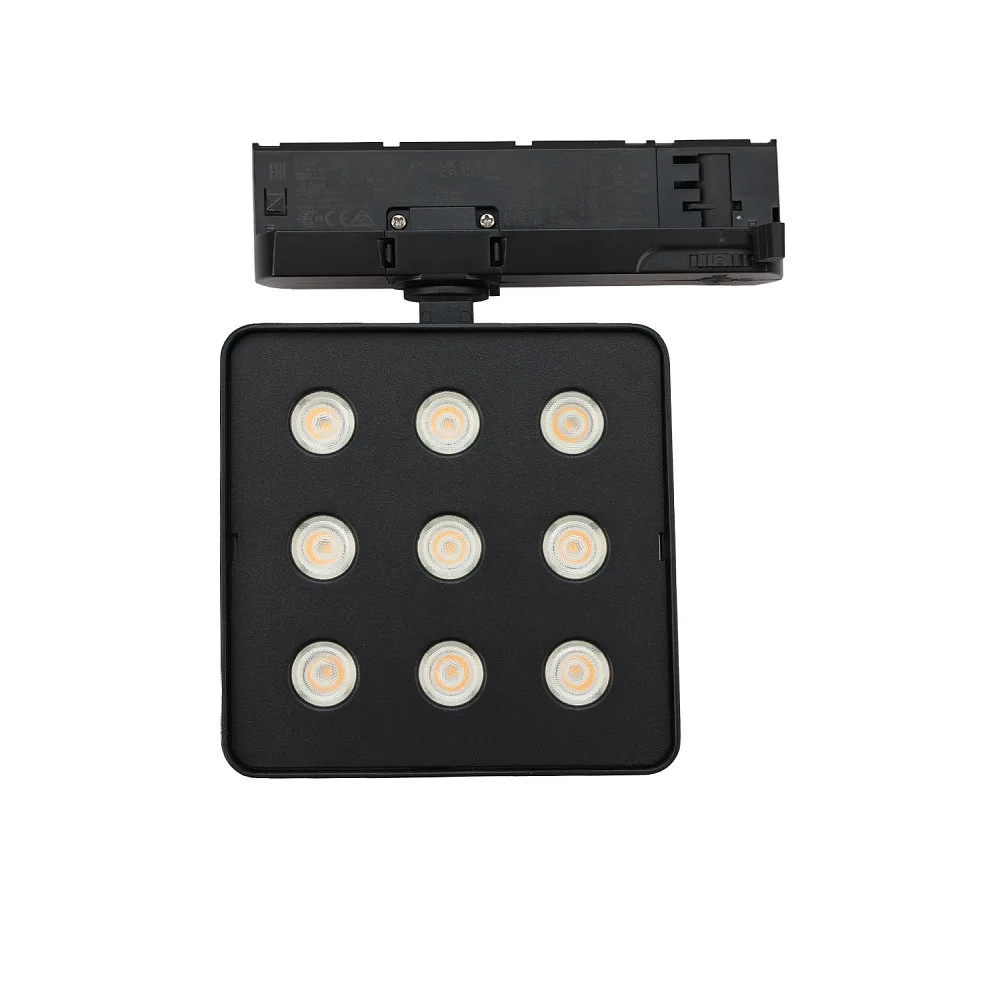

3-phase spot MATRIX DALI square, UGR < 19, with lens optics, on/off, cardanic swivelling IP20, black dimmable

High-Quality LED 3-Phase Spotlight MATRIX for Precise Lighting

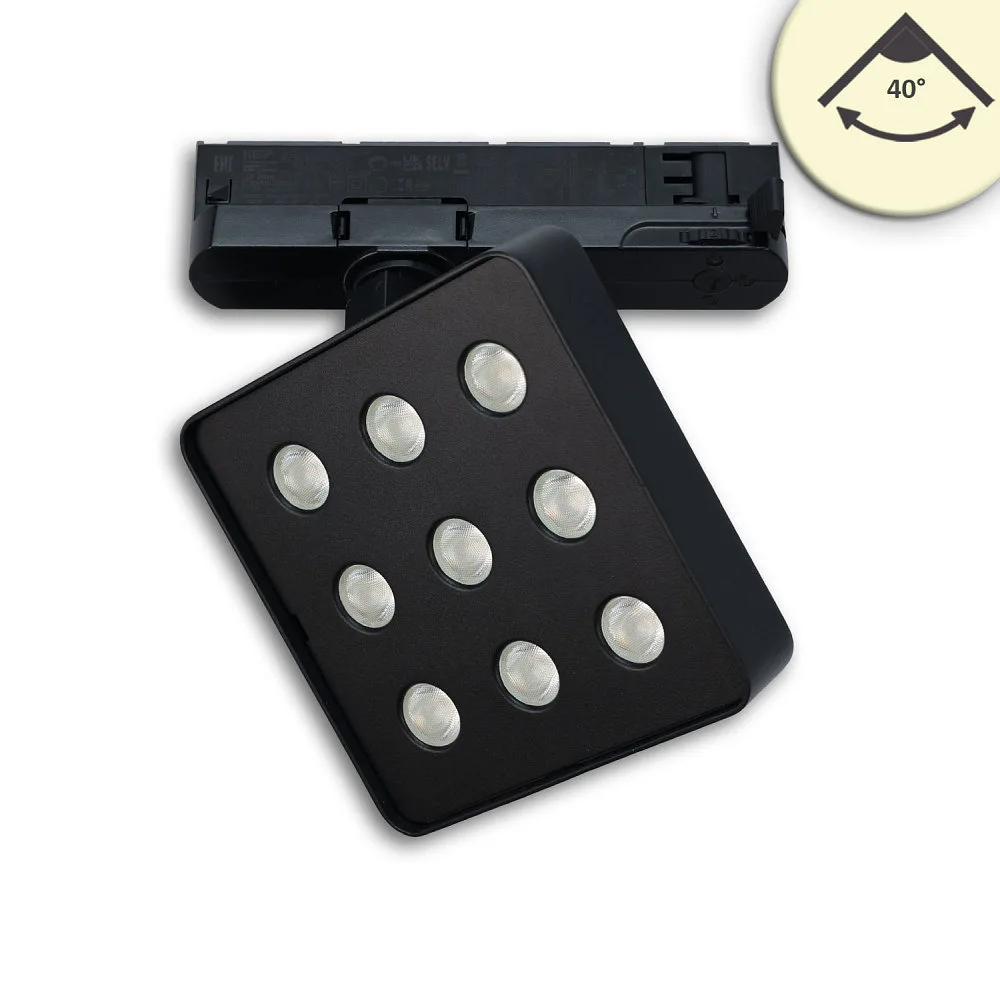

The LED 3-phase spotlight MATRIX from ISOLED impresses with its modern, flat design and a powerful light output of 2100 lumens at only 20 watts power consumption. With a beam angle of 40°, it ensures targeted and even illumination of objects and work areas. The spotlight features a 9-lens optic that optimally bundles the light and emits glare-free light with a UGR value below 19. This makes it especially suitable for screen workstations.

Efficient Technology and Long Service Life

With an average lamp lifetime of 76,000 hours, the MATRIX spotlight guarantees reliable and long-lasting use. Energy efficiency is emphasized by a consumption of only 20 kWh per 1000 operating hours. The operating voltage is 220-240 volts and the mains frequency is 50/60 Hz. The robust housing made of die-cast aluminum ensures stability with a total weight of 1.35 kg. Protection class 1 and IP20 rating ensure safe handling and protect the product from dust and contact.

Excellent Color Rendering and Light Quality

The spotlight offers a warm white light color with 3000 Kelvin for pleasant lighting conditions. Particularly noteworthy is the color rendering index of over 92 Ra, which enables excellent color representation and is ideal for object lighting as well as product presentation. Thanks to the McAdam ellipse SDCM3, color consistency is very high, meaning that multiple luminaires of the same type deliver almost identical light. This prevents disturbing color deviations in the lighting.

Flexibility through Cardan Suspension and DALI Dimming Function

The spotlight is mounted on a cardan joint, allowing easy rotation and tilt of the lamp head. This enables precise alignment of the light beam to optimally illuminate different areas. The DALI interface allows stepless brightness adjustment, which can be seamlessly integrated into modern digital building automation systems. Alternatively, a switchable version for analog 3-phase track systems is also available.

Practical Accessories and Easy Installation

Included in the delivery are a 3-phase adapter and a suitable driver, enabling uncomplicated mounting on 3-phase high-voltage tracks. Optionally, the spotlight can be equipped with a honeycomb filter that further reduces glare to a UGR value below 16. The dimensions of the spotlight are compact (28 x 12.7 x 18.3 cm), allowing flexible and space-saving installation. The black aluminum housing provides an elegant appearance.
