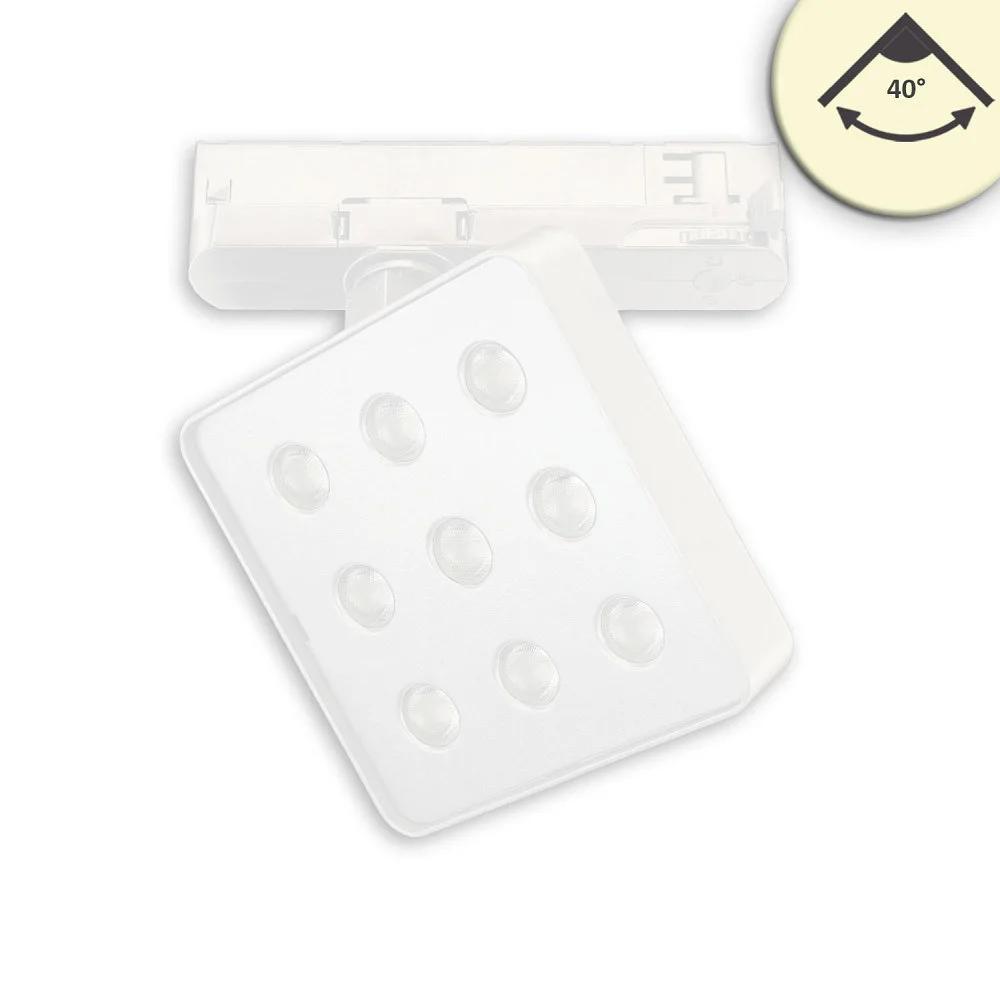

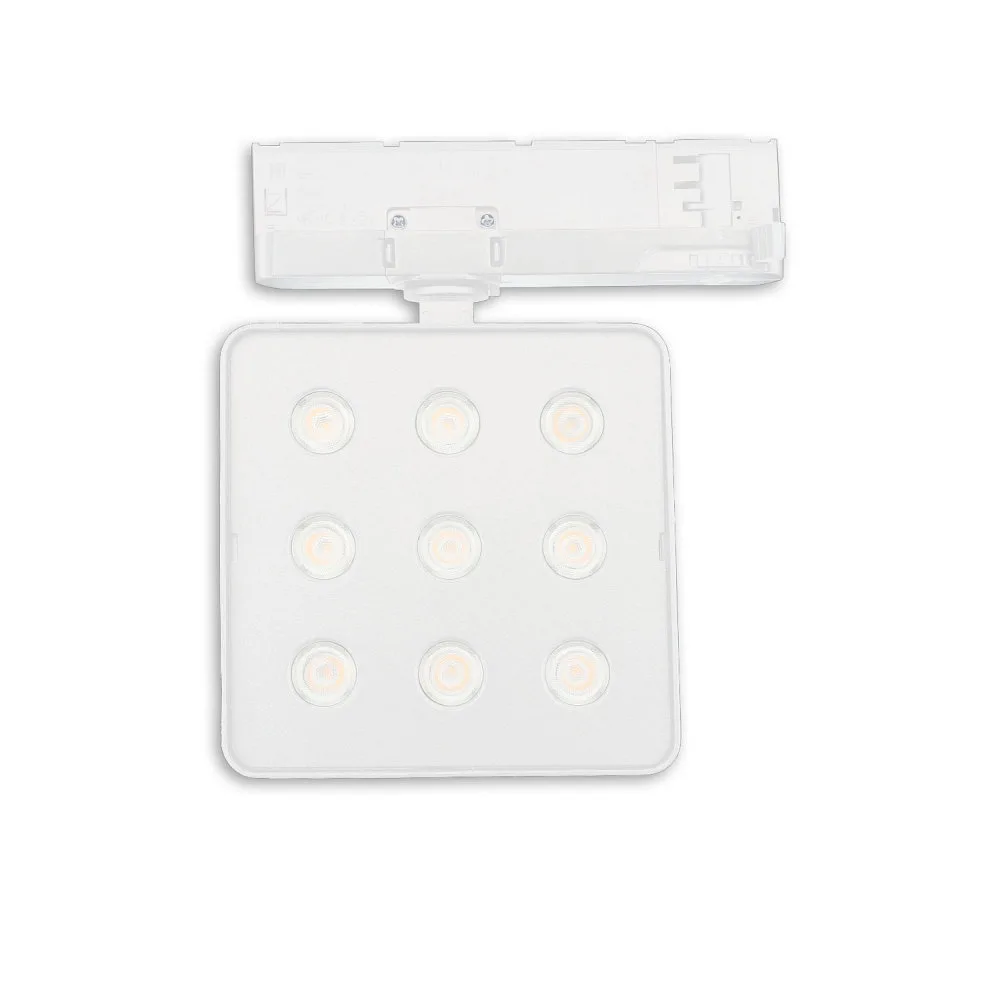

3-phase spot MATRIX ON-OFF square, UGR < 19, switchable, with lens optics, cardanic swivelling IP20, white

High-Quality 3-Phase LED Spotlight for Precise Lighting

The LED 3-phase spotlight MATRIX from ISOLED impresses with its modern, angular, and flat design, which can be optimally integrated into various 3-phase high-voltage rail systems. With a power consumption of only 20 watts, it produces a luminous flux of 2100 lumens at a warm white color temperature of 3000 Kelvin. Thanks to its 9-lens optic, the light is distributed precisely and efficiently with a beam angle of 40°, enabling targeted object and product presentation.

Excellent Color Rendering and Pleasant Light Quality

The spotlight offers outstanding color rendering with a CRI value of over 92Ra, classified as level 1A. This high color rendering ensures vivid and natural color reproduction, ideal for screen workstations and product lighting. The light color is warm white, creating a pleasant atmosphere. Color consistency is ensured by a low deviation (SDCM3), so multiple spotlights produce a uniform light image.

Flexible Orientation and Glare-Free Light

The gimbal-mounted lamp head can be rotated and tilted, allowing optimal alignment of the light beam. With a glare rating of UGR <19, the spotlight is also suitable for demanding workstations with screen use. For even more comfort, a honeycomb filter can optionally be used, which reduces glare to UGR <16. The direct and switchable light output enables easy operation without loss of light quality.

Durable and Energy-Efficient with Thoughtful Accessories

The average lifespan of the LED is an impressive 76,000 hours, ensuring long service life and low maintenance costs. The spotlight consumes only 20 kWh per 1,000 operating hours, making it very energy efficient. Included in the delivery are a 3-phase adapter and the matching driver, while additional accessories such as the 3-phase rail or honeycomb filter are available separately. The housing made of robust die-cast aluminum guarantees stability and durability.

Technical Details and Versatile Applications

The LED spotlight operates at a supply voltage of 220-240V with a mains frequency of 50/60Hz and is designed for ambient temperatures between -20 and +40°C. With protection class 1 and IP20 protection rating, it is suitable for many areas of application. The compact size of 16.6 x 12.7 x 18.5 cm and the low weight of 1.35 kg allow for easy installation. The switchable ON-OFF version is ideal for analog controllable systems, while a DALI-dimmable variant is also available for modern building automation.
