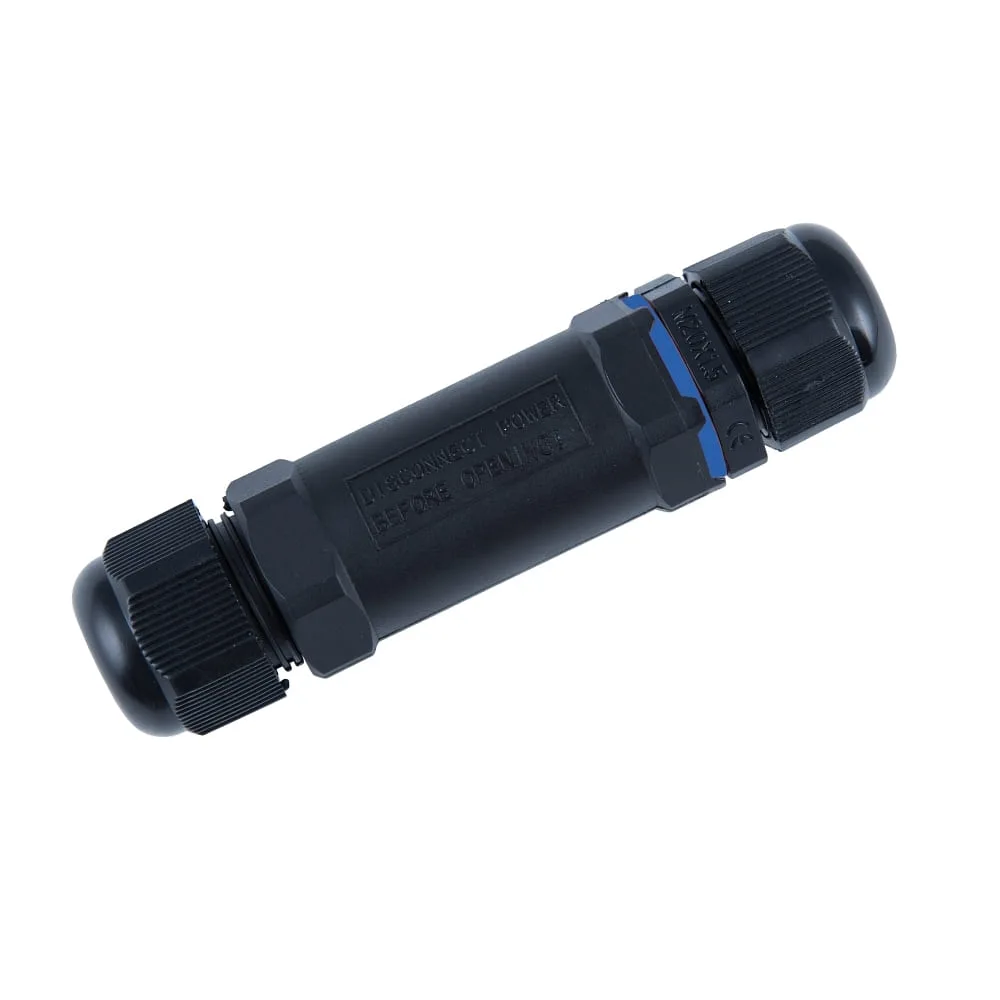

Cable connector, 3 pole, 115x26,5mm, IP68, black

Robust and Reliable Cable Connector from Heitronic

The outdoor cable connector from Heitronic offers a secure and durable solution for connecting supply cables with free ends. With dimensions of 11.5 cm in length and a diameter of 2.65 cm, the connector is compact and easy to handle. The product is elegantly finished in black and weighs only 38 grams, which makes installation and transport easier. Thanks to high-quality materials such as fiber-reinforced polyamide (PA66), copper, and silicone, the connector is particularly resilient.

Excellent Protection with IP68 Certification

This cable connector is certified according to IP68, meaning it is both dustproof and waterproof. It withstands water pressure at depths of up to 1 meter, providing reliable protection against moisture and dirt. This protection class ensures high operational safety even under demanding conditions. The flame-retardant plastics also provide a high level of safety in the event of fire.

Technical Details Made Easy

The connector is designed for a maximum operating voltage of 230 volts and a mains frequency of 50 Hz. It supports conductor cross-sections from 0.5 to 2.5 mm² and is compatible with cable glands ranging from 7 to 13 mm². Underground cables of the NYY-J type up to 3G1.5 mm² can also be connected without any problems. The use of copper in the contacts guarantees optimal electrical conductivity and ensures a secure connection without power loss.

Temperature Resistance and Durability

The cable connector is designed for a temperature range from -40 to +105 degrees Celsius, making it extremely frost-resistant and heat-resistant. This feature ensures that the connector reliably performs its function even under extreme temperature fluctuations and does not become brittle or fragile. This makes it particularly durable and low-maintenance for various applications.

Easy Installation and Versatile Application

Installing the cable connector is straightforward and quick, as it has an input and an output, allowing cables to be easily connected. Thanks to the thoughtful design made from robust and flexible materials, it adapts optimally to the cables and provides a firm hold. This makes the connector a practical solution for a wide range of electrical connections where reliability and protection are paramount.
