dimmer DALI 4 MASTER DALI controllable, black

Innovative DALI 4 Address Built-in Touch Master Dimmer

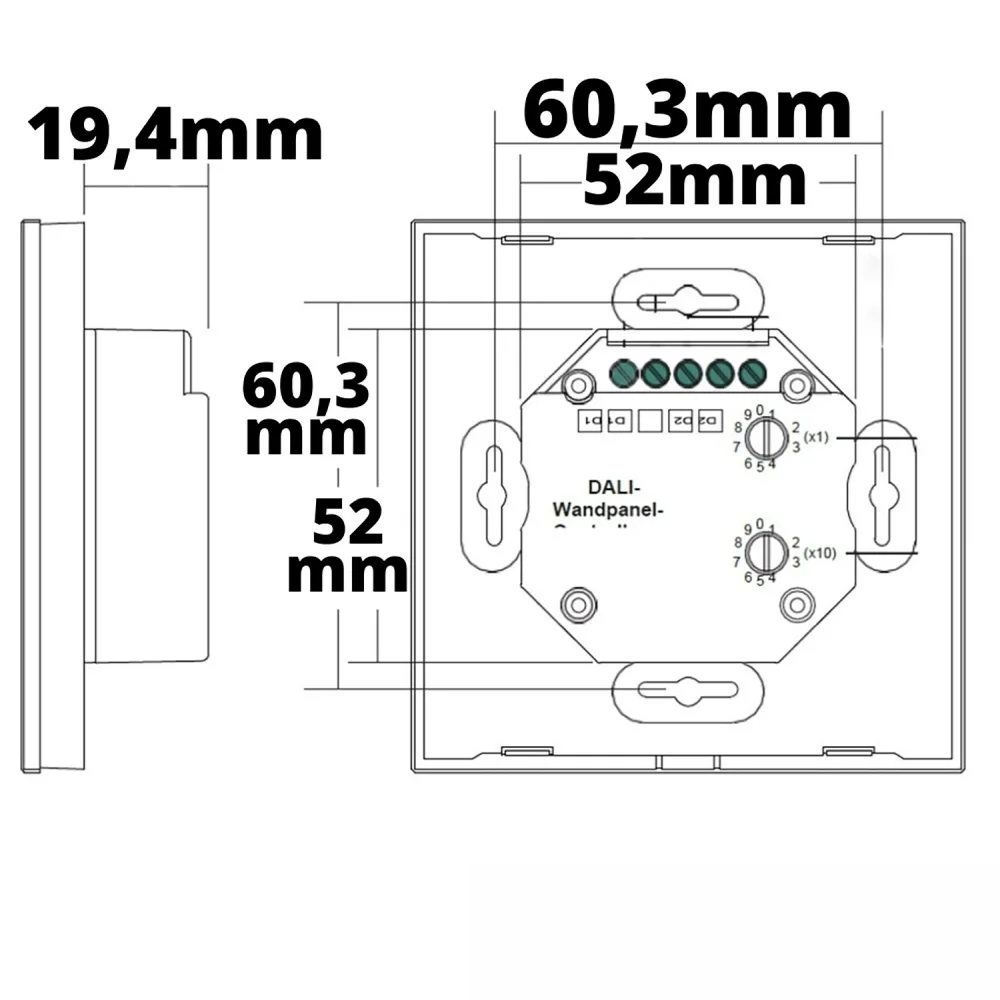

The DALI 4 Address Built-in Touch Master Dimmer from ISOLED impresses with its modern technology and easy handling. It is specially designed for wall mounting and convinces with its elegant black design. With dimensions of 8.5 x 8.5 x 4.3 cm, it is compact and blends unobtrusively into any environment. The installation depth is only 1.94 cm, while the installation opening has a diameter of 5.2 cm. These dimensions allow for easy installation in existing wall openings.

Technical Details and User Convenience

The dimmer operates with a supply voltage of 24V DC, which is supplied via the DALI bus. Control is touch-sensitive via a high-quality glass interface, available in both white and black. The device is equipped with an LED indicator, included in the delivery, providing clear feedback on the current status. Installation is done via a clamp connection, ensuring a secure and reliable power connection.

Compatibility and Standards

The master dimmer complies with the international DALI standard protocols IEC 62386-102 and IEC 62386-207. This guarantees trouble-free integration with DALI products from other manufacturers. This compatibility makes the device versatile and facilitates networking in complex lighting systems. Additionally, the dimmer supports the bus detective function, which enables easy diagnosis and fault detection on the DALI bus.

Robust Construction and Protection Class

The housing of the DALI dimmer is made of robust plastic and is rated IP20, protecting it against solid foreign objects larger than 12.5 mm in diameter. The ambient temperature range in which the device operates reliably is between -20 and +50 °C. These features ensure a long service life and stable performance even under changing conditions.

Easy Integration and Versatile Application

The DALI 4 Address Built-in Touch Master Dimmer is ideal for anyone seeking precise and comfortable light control. Thanks to its TCP/IP protocol, the dimmer can be easily integrated into modern building control systems. The simple installation via built-in mounting allows for quick commissioning, while the slim design offers an aesthetic solution for any wall. With this dimmer, you rely on quality, functionality, and future-proof technology.
