Feed-In for 1-Phase High Voltage track,integrated version, protective conductor left, white

High-Quality Feed-In Connector for 1-Phase HV Busbar

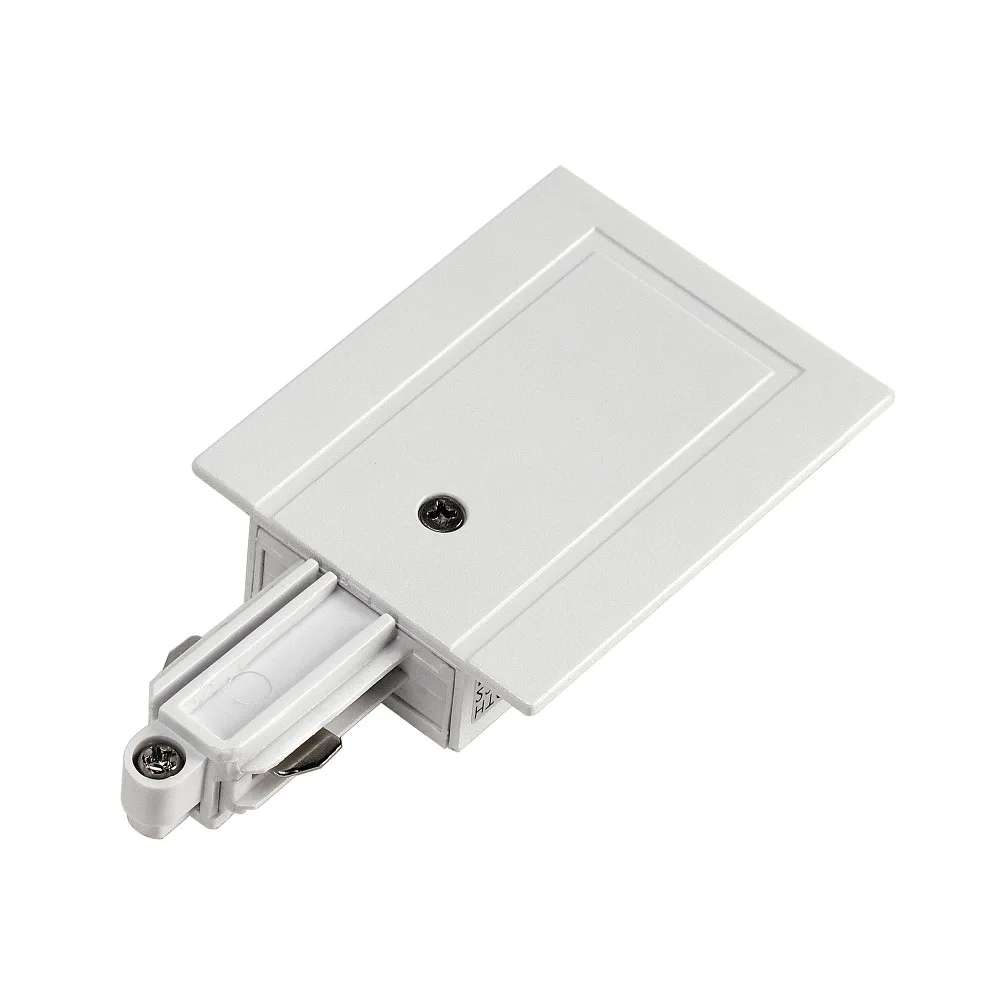

The feed-in connector from SLV is specially designed for 1-phase high-voltage busbars and provides a reliable connection to the power supply. With an operating voltage of 230V~, this product ensures a safe and stable power supply. The built-in version is especially space-saving and can be easily integrated into existing systems.

Practical Dimensions and Compact Design

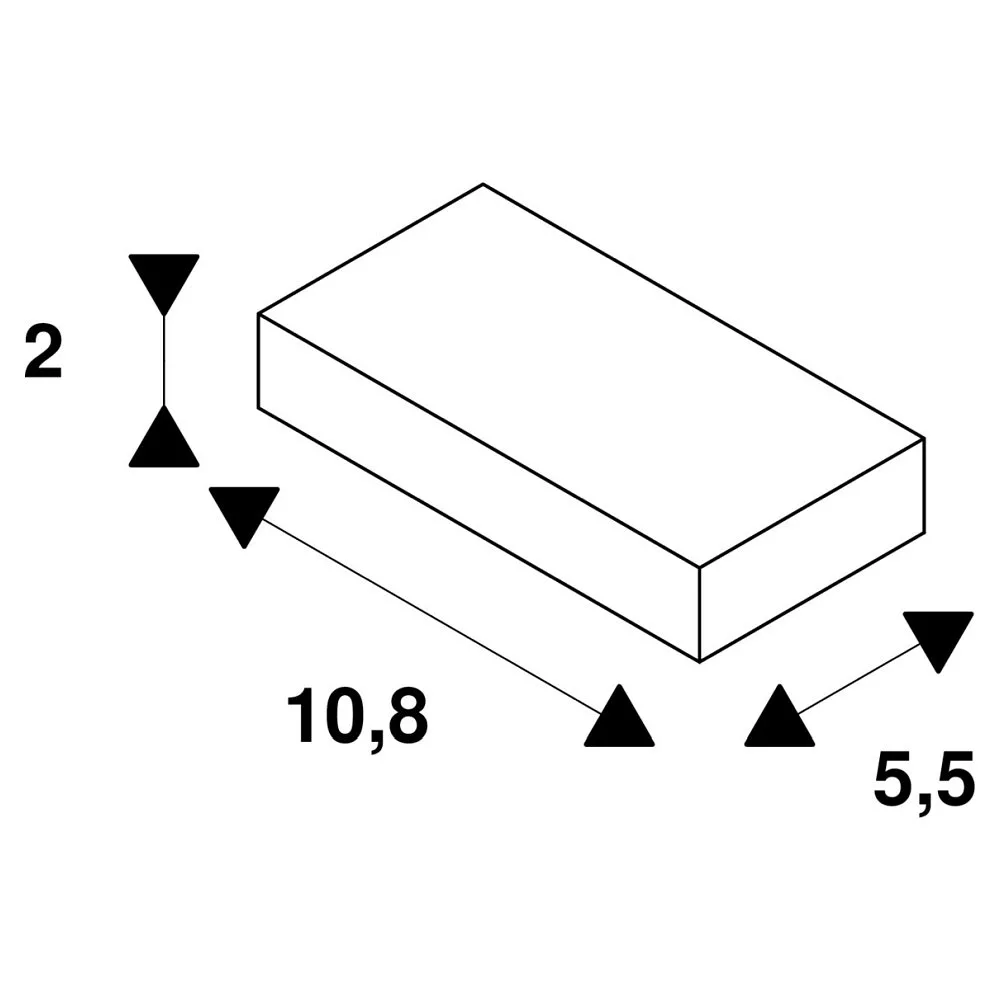

The feed-in connector is available in two sizes: 7 x 5.5 x 0.2 cm and 10.8 x 5.5 x 2 cm, with an installation depth of only 1.7 cm. This compact design allows for easy installation in ceiling areas without taking up much space. The rectangular installation opening measures 6.5 cm in length and 3.5 cm in width, ensuring precise and accurate mounting.

High Current Capacity and Protection Class

With a maximum current capacity of 16 amperes, the feed-in connector is suitable for a wide range of applications and guarantees a secure power supply. Protection class 1 additionally provides optimal protection through the protective conductor, which is located on the left side. This increases safety during use and reduces potential hazards.

Aesthetic Design in White

The feed-in connector is finished in a subtle white that blends harmoniously into many environments. This color supports a clean and modern appearance without being intrusive. The low weight of only 44 grams also makes the product very handy and easy to handle.

Easy Installation and Reliable Quality

The SLV product is characterized by easy installation, which is possible even without extensive technical knowledge. The high-quality workmanship ensures durability and long-lasting functionality. Thus, this feed-in connector is the ideal solution for anyone who wants to ensure a safe and efficient power supply for their 1-phase HV busbar.
