LED panel REFIDO 2CCT DALI-2 / 32.5 X 32.5 CM surface-mounted version, DALI controllable, CCT Switch, UGR < 19, dimmable 13

High-Quality REFIDO LED Surface-Mounted Panel from Brumberg

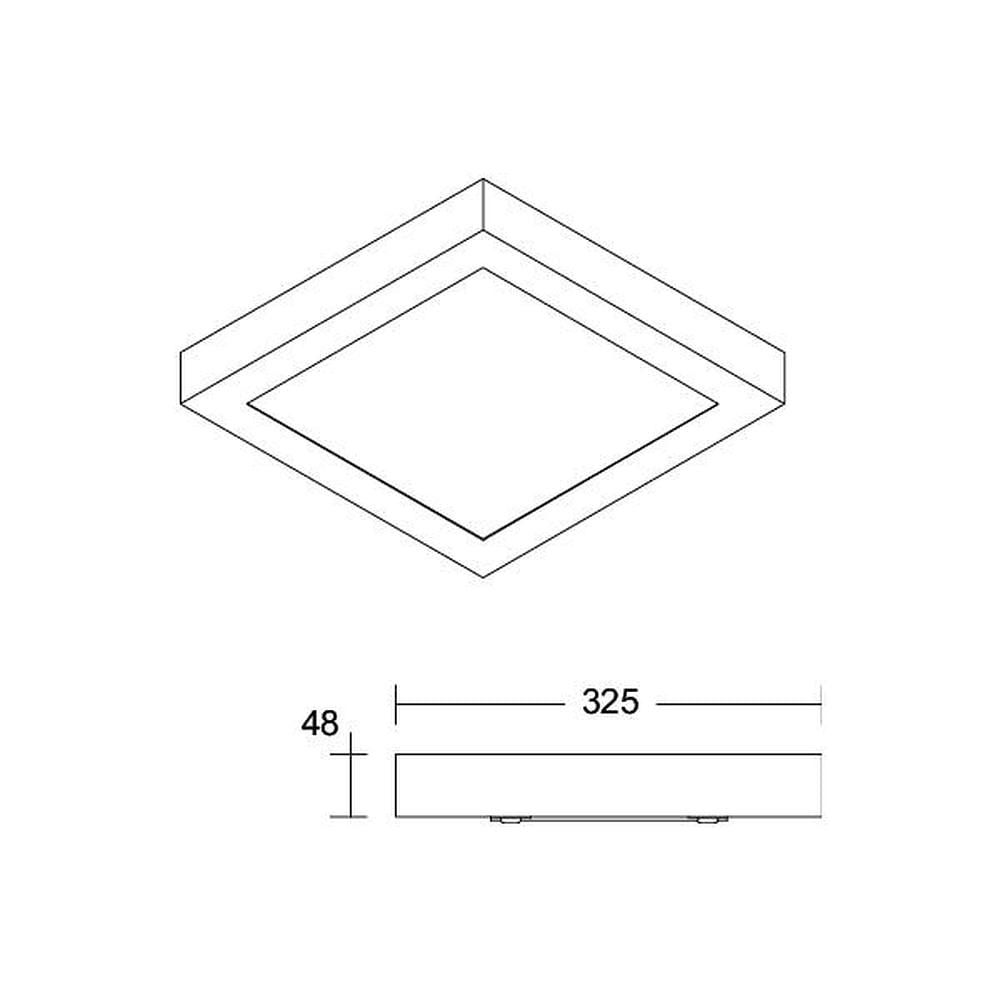

The REFIDO LED surface-mounted panel from Brumberg impresses with its high-quality workmanship and modern white design. With dimensions of 32.5 x 32.5 cm and a slim installation height of only 4.8 cm, the panel integrates harmoniously into any environment. The robust aluminum housing combined with a micro-prismatic PMMA cover ensures optimal light distribution and a long service life. This product is especially suitable for screen workplaces, as it offers glare control with a UGR value below 19.

Efficient Lighting with Variable Light Color

The REFIDO LED panel offers a stepwise adjustable light color that can be switched via an integrated switch between warm white (3000K) and neutral white (4000K). With a high luminous efficacy of up to 115 lumens per watt, it provides bright and pleasant illumination. The maximum luminous flux is 1450 lm at 3000K and 1500 lm at 4000K, depending on the setting. Thus, the panel adapts flexibly to individual lighting needs and creates a comfortable atmosphere.

Durability and Energy Efficiency in Focus

With an impressive average lifetime of 78,000 hours (L80/B10 at 25°C), the LED panel offers high reliability and significantly reduces maintenance costs. The power consumption is only 13.5 watts, corresponding to an energy use of 14 kWh per 1,000 operating hours. The combination of long-lasting LED technology and efficient energy consumption makes the REFIDO panel a sustainable choice for all lighting requirements.

Flexible Control and Easy Installation

The LED panel is equipped with an integrated LED driver that allows direct connection to the power grid. The operating voltage ranges from 176 to 276 volts, covering both alternating and direct current. Additionally, the panel is DALI-dimmable and supports the control protocols DT6 and DALI-2, enabling individual light regulation. The scope of delivery includes the light color switch and the driver, while connection cables, controllers, and dimmers are available optionally.

Versatile Applications and High Safety

The REFIDO LED panel complies with protection class 1 and is rated IP20, making it suitable for a wide range of applications. The glow-wire test according to IEC 60695-2-12 at 650°C confirms the high safety of the product. Furthermore, the panel is suitable for emergency power operation, which requires a central external battery. The high number of luminaires that can be operated on a circuit breaker also makes the REFIDO panel interesting for larger projects. The availability of the panel in various versions and sizes underlines its versatility.
