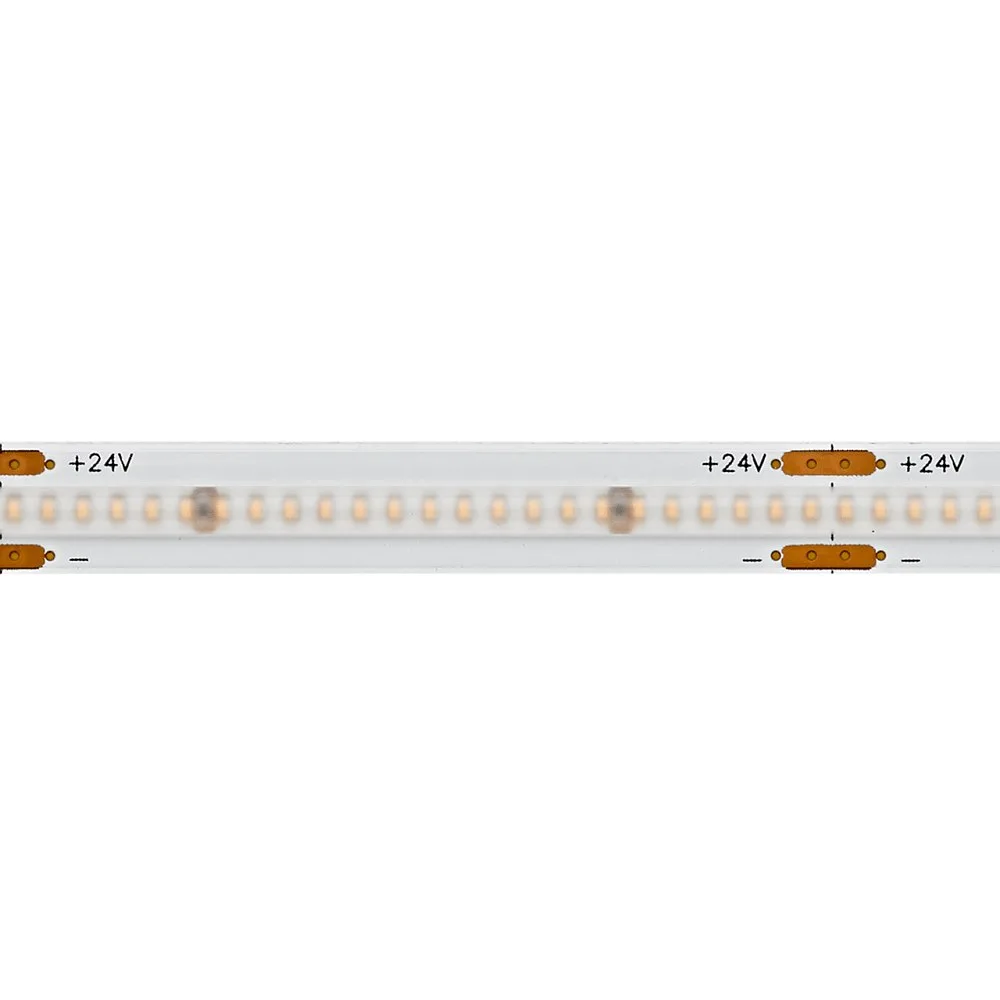

LED Strip CSP

High-Quality LED Strip with Excellent Light Quality

The CSP LED strip from SIGOR offers impressive light output at a length of 5 meters. With a power consumption of 10 watts per meter, it produces a pleasant warm white light color of 3000 Kelvin, creating a cozy ambiance. The luminous efficacy of 100 lumens per watt ensures efficient and bright illumination, delivering a total of 5050 lumens. Thanks to a color rendering index of Ra90, colors appear natural and vibrant, which is especially advantageous in living and working areas.

Technical Details for Reliable Operation

The LED strip operates at a supply voltage of 24 volts DC and has a power rating of 50 watts. With 320 LEDs per meter and a total of 1600 light sources on the 5-meter strip, it provides uniform and broad illumination. The LEDs are of the CSP type, which stands for "Chip Scale Package," enabling a particularly compact design and high efficiency. The strip is rated IP20, offering protection against dust but not against water.

Long Lifespan and Stable Light Quality

This LED strip impresses with an average lifespan of up to 72,000 hours, guaranteeing a very long usage period. Even at the end of its life, 80 percent of the residual light output remains, ensuring stable light quality throughout its entire service time. The color consistency (SDCM) of 3 ensures the light remains color-uniform without disturbing color deviations.

Flexible Adjustment and Easy Installation

With a length of 500 centimeters and a width of only 0.8 centimeters, the LED strip is very slim and can be inconspicuously installed in many areas. It can be cut every 5 centimeters, allowing individual adaptation to different room sizes or lighting concepts. Power feed-in is available both primarily and secondarily, each with a length of 100 centimeters, which simplifies installation and provides flexible connection options.

Thermal Management and Operating Conditions

The LED strip can be operated within a temperature range of -40 to 65 degrees Celsius, making it robust against various ambient conditions. The maximum housing temperature (Tc) is 75 degrees Celsius, ensuring safe and efficient thermal management. The strip emits light at an angle of 150 degrees, providing broad and even illumination.
