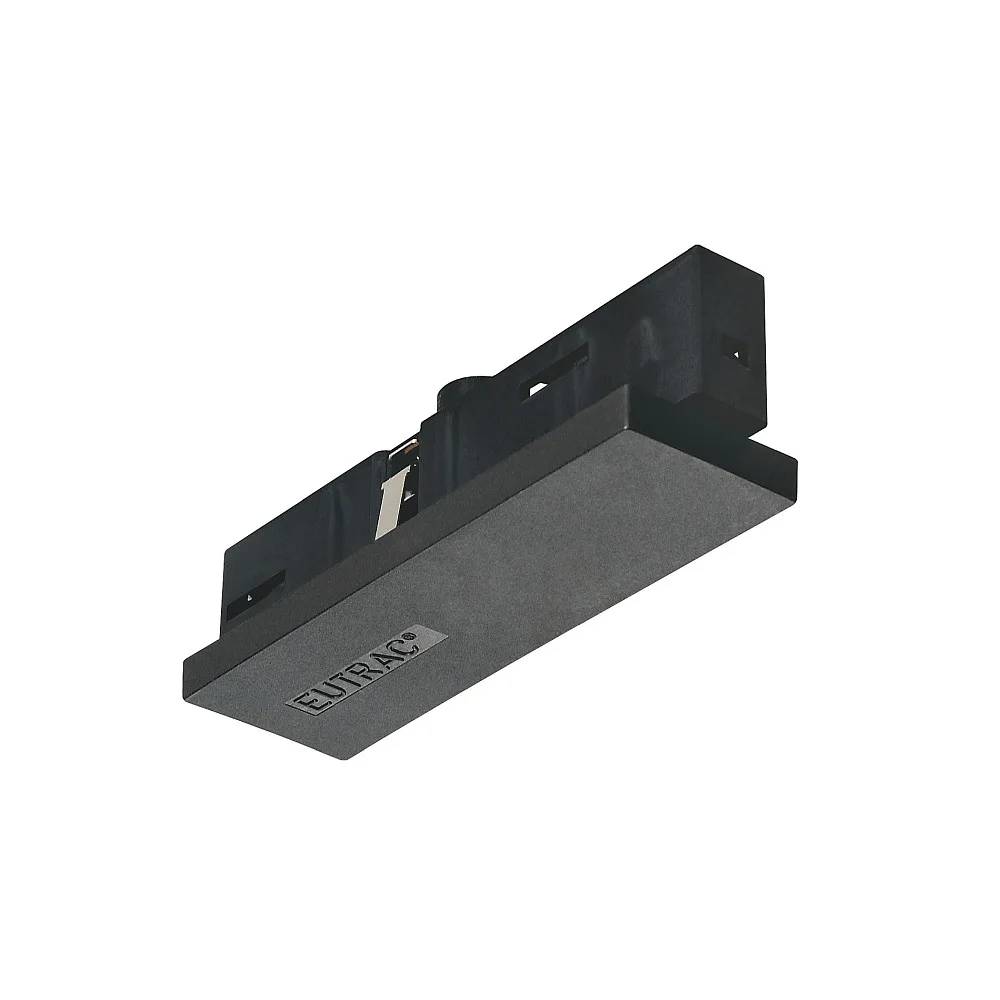

Middle feed-in for 3-Phase High voltage Track, black

Robust Central Feeder for EUTRAC 3-Phase HV Rail

The EUTRAC central feeder is specially designed for the 3-phase HV busbar system from EUTRAC. It enables easy and secure power feed-in to the rail system, ensuring reliable energy supply. With a weight of 78 kg, this product is constructed to be stable and durable, making it suitable even for demanding applications.

Technical Data and Performance

The central feeder operates at a nominal voltage of 230 volts AC and is rated for a maximum current load of 16 amperes. These specifications ensure efficient power transmission and protect the busbar from overload. Additionally, the protection rating of IP20 guarantees safe operation against accidental contact and dust ingress.

VDE-Certified Quality for Maximum Safety

The product is VDE certified, representing the highest safety and quality standards. This certification ensures that the central feeder complies with German and European norms, making it safe to use. Customers can trust that the product has been thoroughly tested and functions flawlessly.

Compact Dimensions and Flexible Positioning

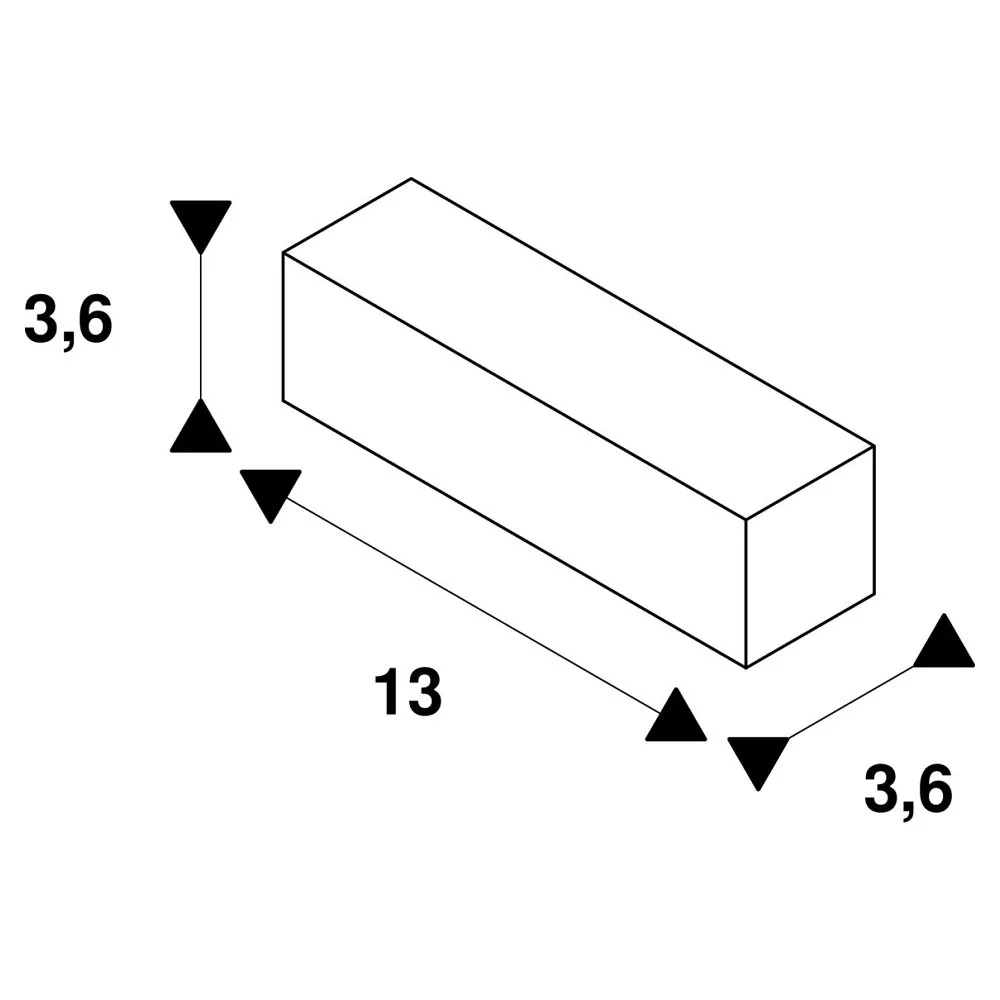

With compact dimensions of 13 cm in length, 3.6 cm in width, and 3.6 cm in height, the central feeder can be easily integrated into the existing rail system. A major advantage is the ability to position the feeder at any point along the 3-phase busbar, offering maximum flexibility during installation.

Exclusively for EUTRAC 3-Phase Busbars

This central feeder is exclusively designed for use with EUTRAC 3-phase busbars. This ensures optimal compatibility and functionality. The combination of thoughtful design and high quality makes this product the ideal choice for anyone needing a reliable power supply in their EUTRAC 3-phase system.
