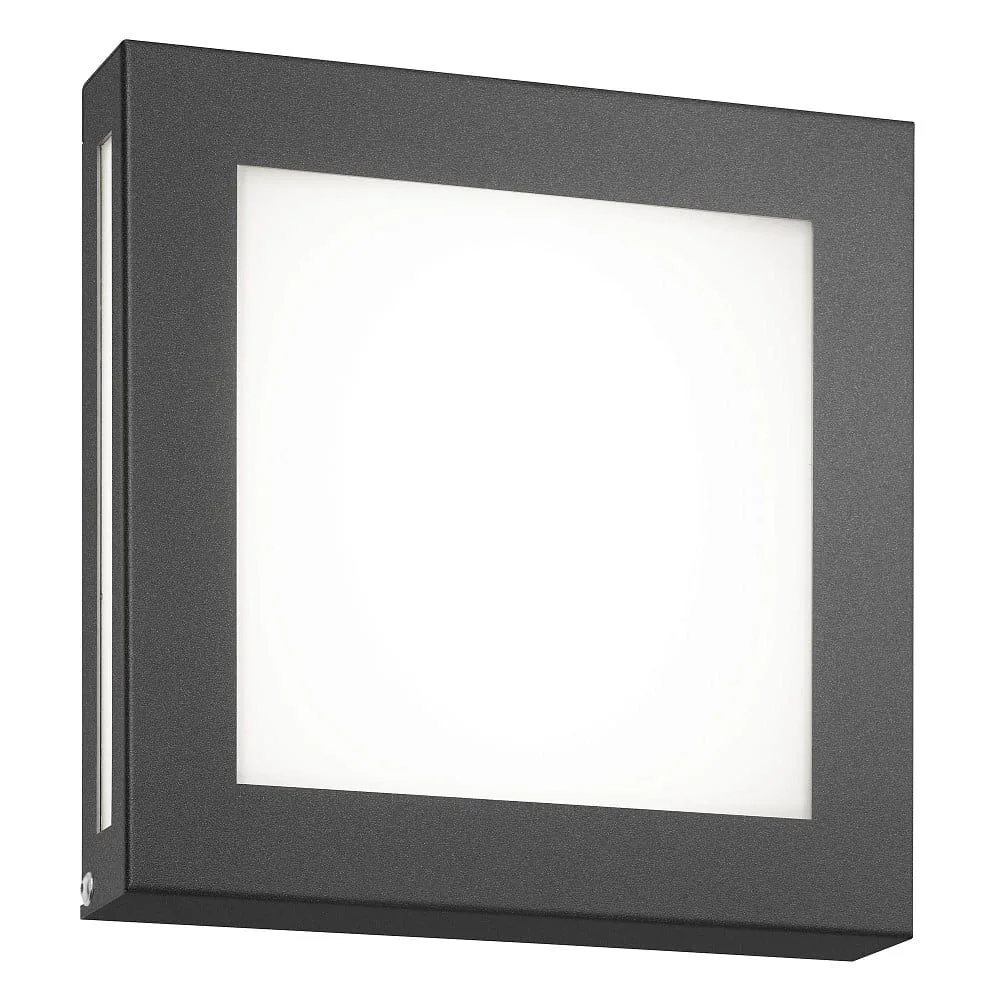

Outdoor LED wall luminaire 22 x 22cm with motion detector, IP44, 12W 3000K, stainless steel / opal glass, anthracite

CMD Creative Metalldesign



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Modern Design and High-Quality Materials

The outdoor LED wall light from CMD impresses with its elegant, square design measuring 22 x 22 cm. Made from robust stainless steel and opal glass, it convinces with durability and an appealing anthracite appearance. The powder-coated surface reliably protects the fixture against corrosion and other environmental influences, ensuring it maintains its high-quality look even after long periods.

Efficient Illumination with Warm White Light

With a power consumption of only 12 watts, the wall light produces a luminous flux of 1500 lumens, providing bright and pleasant illumination. The color temperature of 3000 Kelvin creates a warm white light that ensures a cozy atmosphere. The energy consumption of 12 kWh per 1000 hours is particularly economical, making the fixture an environmentally friendly and cost-efficient solution.

Integrated Motion Sensor for More Comfort and Security

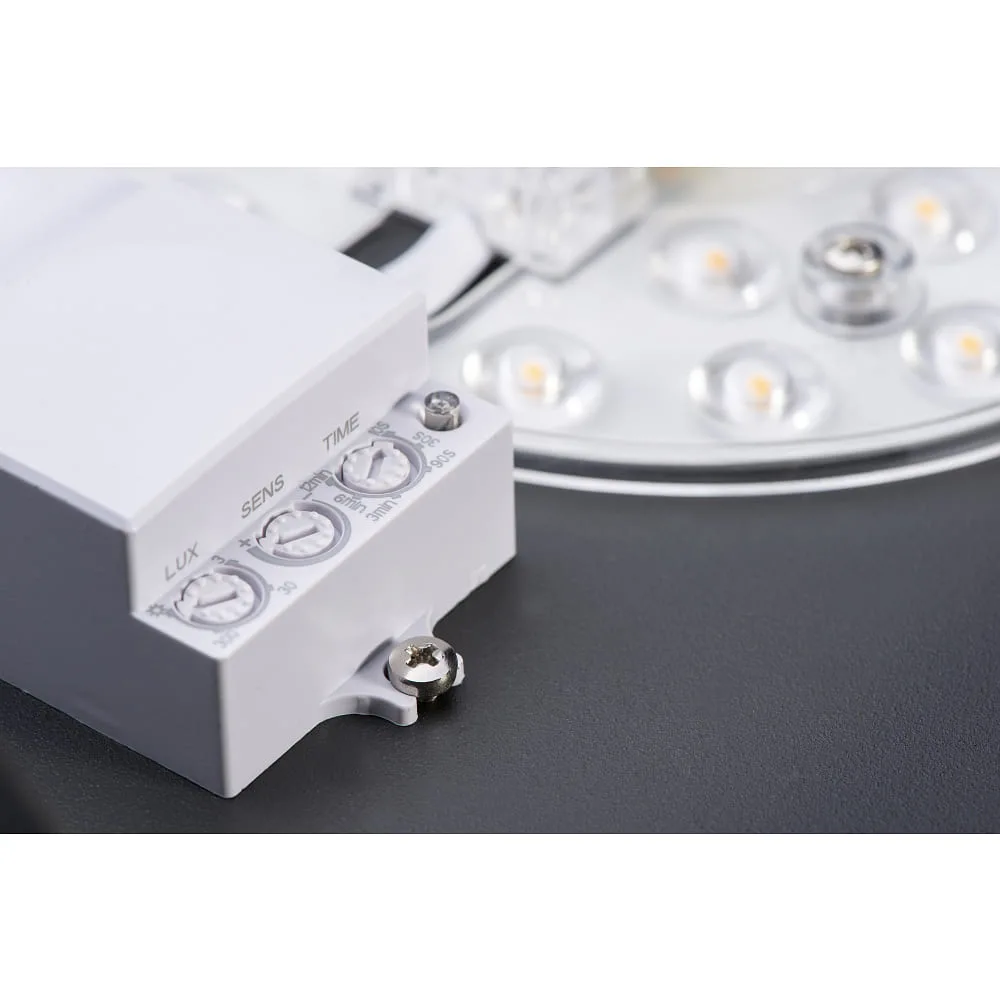

An integrated microwave motion sensor with a detection angle of 180° and a range of up to 8 meters ensures that the light source is automatically activated as soon as movement is detected. The timer can be flexibly adjusted between 10 seconds and 12 minutes, so the light only shines when actually needed. This makes operation especially comfortable and energy-saving.

Technical Details Simply Explained

The wall light operates with a supply voltage of 230 volts and a mains frequency of 50 hertz. The IP44 protection rating guarantees safe protection against splashing water, while protection class 1 ensures safe electrical insulation. The average lifetime of the built-in LED is an impressive 50,000 hours, allowing for long-lasting operation without frequent replacements. The maximum switching capacity of the sensor is 500 watts.

Completely Equipped for Easy Installation

The scope of delivery includes, besides the fixture itself, the integrated motion sensor and the matching power supply, so no additional components are needed. With a slim depth of only 4.5 cm, the light can be mounted discreetly and space-saving. The combination of high-quality materials, efficient technology, and practical accessories makes this LED wall light an ideal choice for a modern and functional lighting solution.

Colour:
anthracite
Glass color:
opal
Dimension:
W∕ H∕ D: 22∕ 22∕ 4,5 cm
Material:
glass
stainless steel
powder coated
Product type:
outdoor wall luminaire
Accessories:
motion detector - included in delivery
power supply unit - included in delivery
Operating voltage:
230 V~
Dimmable:
no
Power frequency:
50 Hz
Power consumption:
12 W
Number of bulbs:
1
Detection angle:
180°
Time setting:
10sec. - 12 min
Light colour:
warm white
Beam direction:
front / lateral
Light flux:
1500 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Motion sensor integrated:
yes
Max. current carrying capacity:
2,17 A
Protection class:
1
IP-protection class:
IP44
resistant to sea air:
no
Additional information:
Switching capacity of the sensor max. 500W
Energy efficiency category:
F
Energy consumption:
12 kWh/1.000 h
Article number:
CMD-117/LED/BM
Purchasing quantity:
1 piece
Brand:
CMD
Manufacturer:
CMD Creative Metalldesign
Manufacturer information
CMD creativ metalldesign GmbH, Falkenstr. 25, 74360, Ilsfeld, Germany, info@creativ-metall.de, https://www.creativ-metall.de
