3-phase spot MATRIX DALI square, UGR < 19, with lens optics, on/off, cardanic swivelling IP20, black dimmable

High-Quality LED 3-Phase Spotlight MATRIX for Precise Lighting

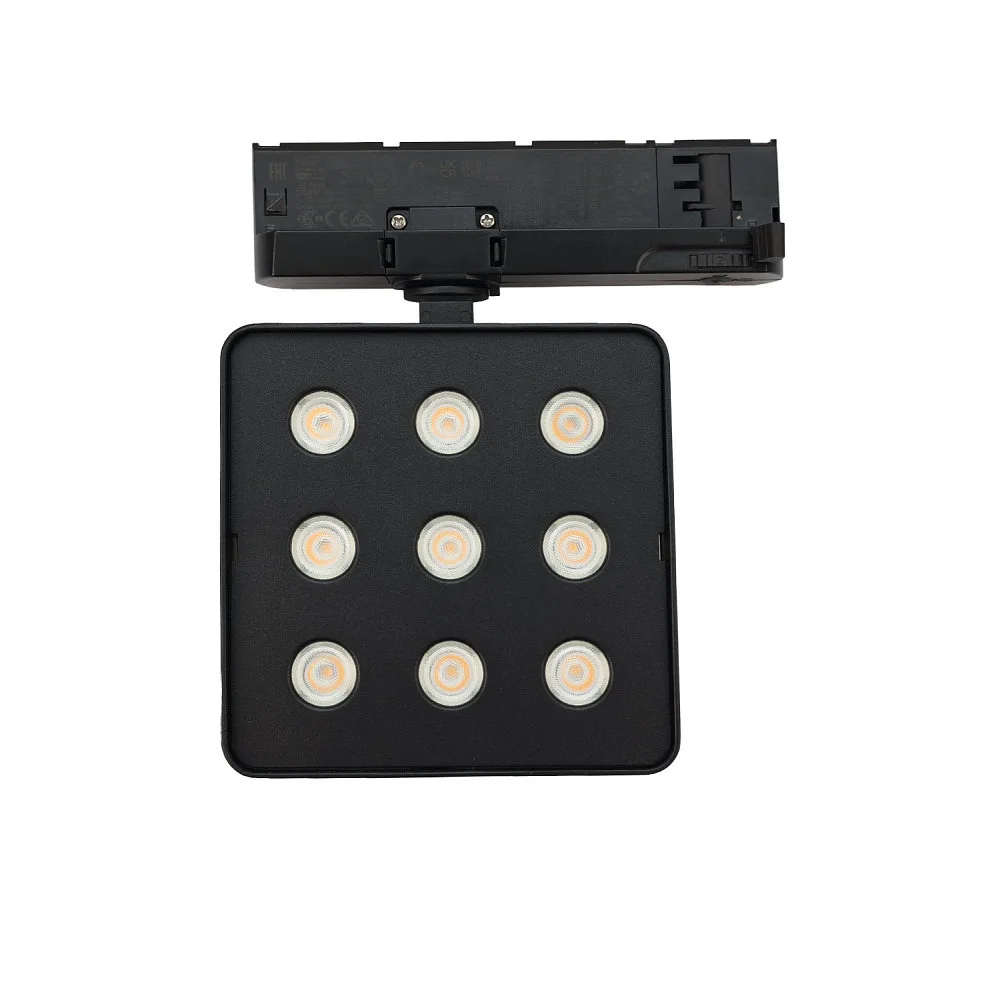

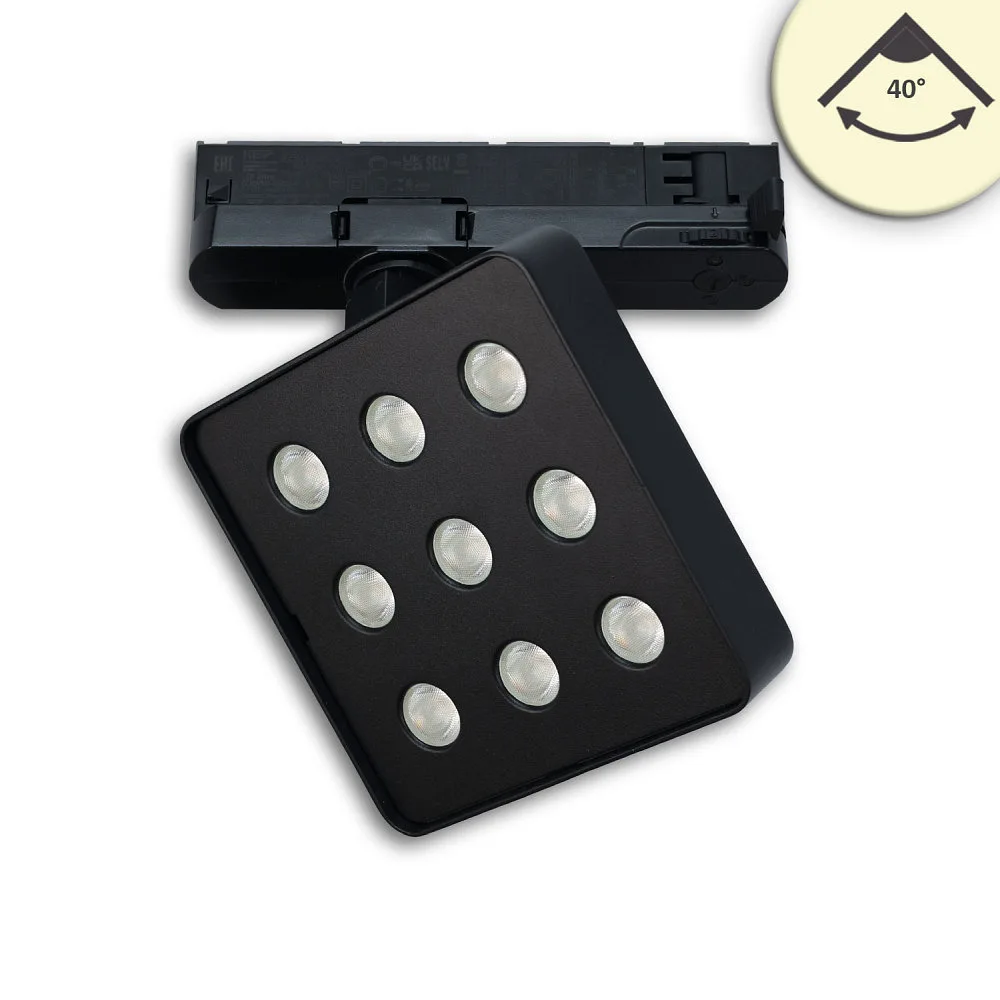

The LED 3-Phase Spotlight MATRIX from ISOLED impresses with its flat, rectangular design and versatile application possibilities. With a luminous flux of 2200 lumens at only 20 watts power consumption, it offers efficient and bright illumination. The 9-lens optics ensure even lighting with a beam angle of 40 degrees. Thanks to the high-quality aluminum die-cast housing in elegant black, the luminaire is robust and durable, weighing only 1.35 kg.

Optimal Light Quality and Color Rendering

The light color of the spotlight is neutral white with a color temperature of 4000 Kelvin, ideal for clear visibility. Particularly noteworthy is the high color rendering index of over 92 Ra, which guarantees natural and accurate color reproduction. With the color consistency SDCM3, very low color deviation between multiple luminaires is ensured. These features make the spotlight perfect for object lighting and product presentation, where exact color rendering is crucial.

Flexible Control and Easy Integration

The MATRIX spotlight is dimmable via DALI, allowing seamless adjustment of brightness and making it ideal for modern building controls. The scope of delivery includes the 3-phase adapter and the driver, enabling easy integration of the luminaire into existing 3-phase high-voltage track systems. Optional accessories such as dimmers, controllers, or honeycomb filters are available separately to customize the spotlight according to different requirements.

Pleasant Glare-Free Lighting for Comfortable Work

The glare control with a UGR value below 19 ensures glare-free illumination, which is especially beneficial at workstation screens. For even more comfort, the UGR value can be lowered to below 16 using the optional honeycomb filter. The rotatable and tiltable lamp head allows precise alignment of the light beam, so light is directed exactly where it is needed without disturbing reflections or glare.

Durability and Technical Robustness

With an average lifespan of 76,000 hours, the LED spotlight offers long-lasting and reliable lighting. The operating voltage is 220-240 V at a mains frequency of 50/60 Hz. Protection class 1 and IP20 protection rating ensure safe operation under normal conditions. The compact design with dimensions of 28 x 12.7 x 18.3 cm makes the spotlight particularly space-saving and flexibly mountable in a wide variety of installations.
