3-phase spot SHAPE adjustable, cardanic swivelling IP20, black dimmable

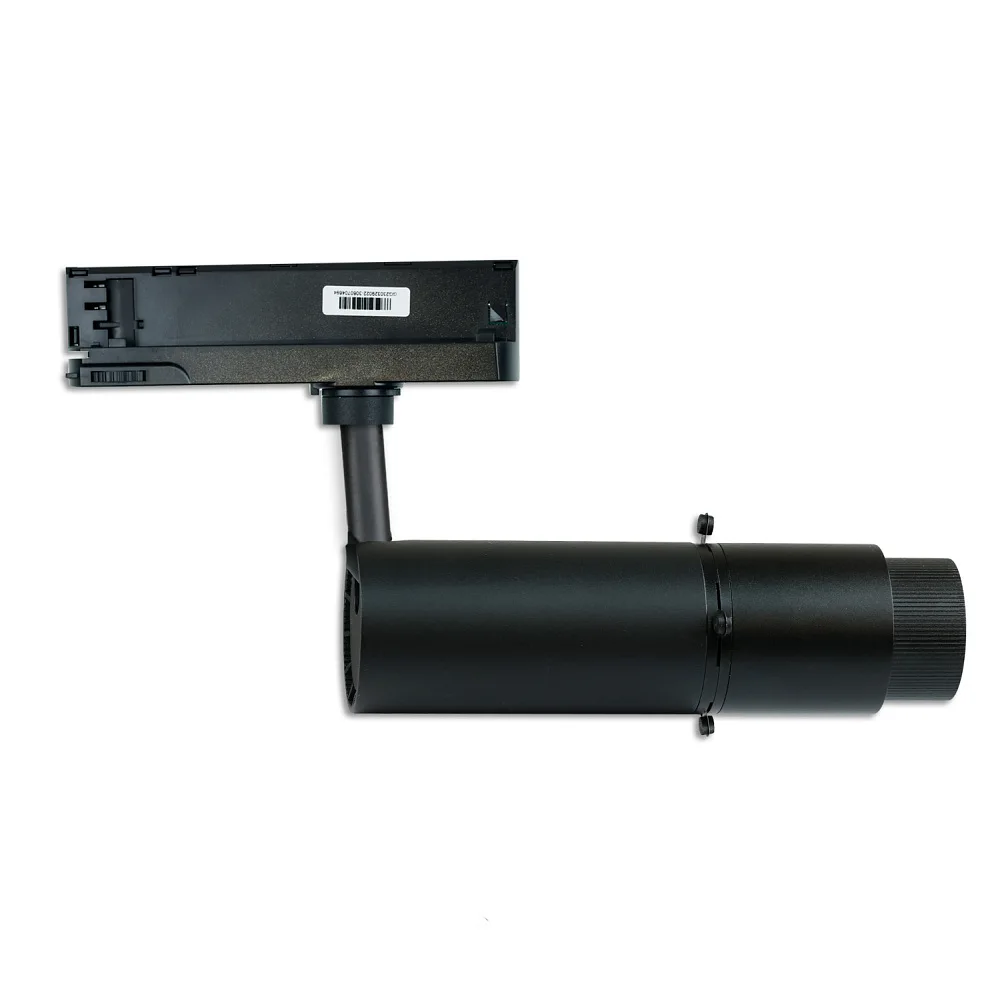

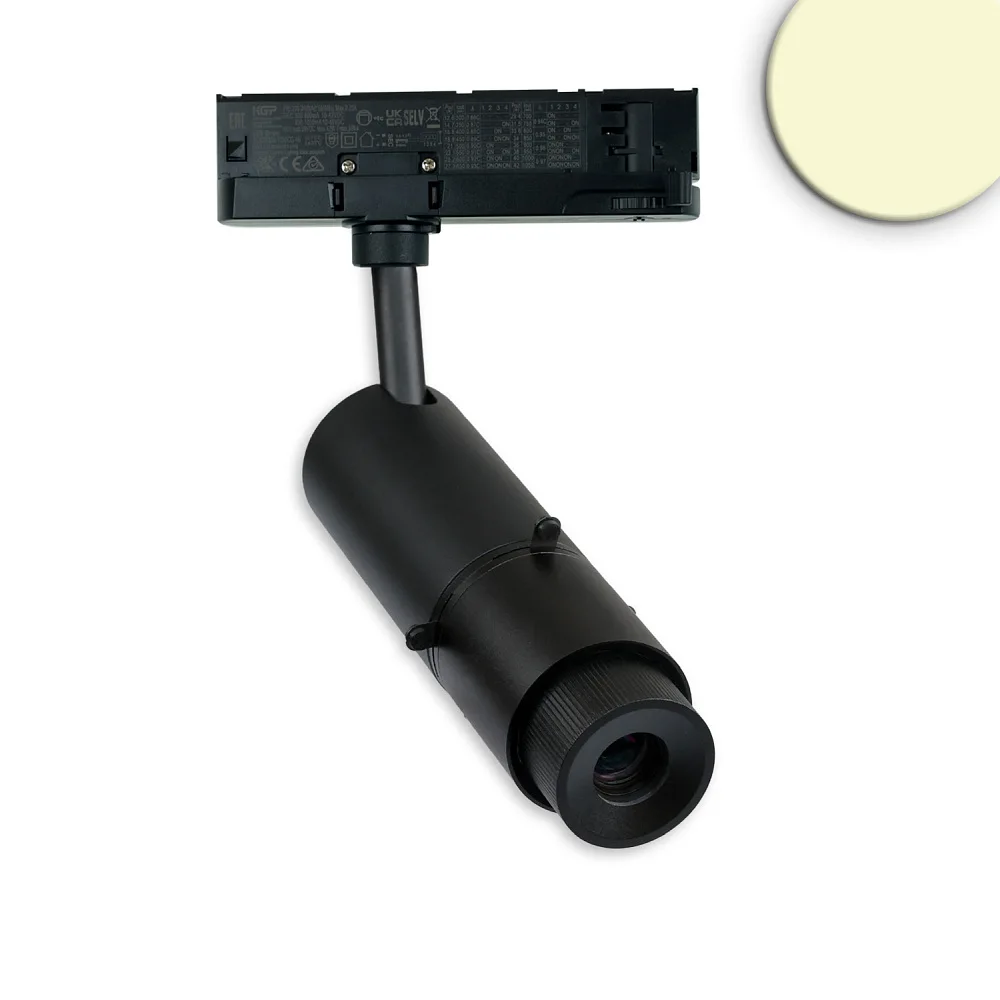

Versatile LED 3-Phase Contour Spotlight SHAPE

The LED 3-Phase Contour Spotlight SHAPE from ISOLED impresses with its compact, cylindrical design and flexible mounting in 3-phase high-voltage rail systems. With a power of 20 watts and a luminous flux of 550 lumens, it offers an efficient and powerful lighting solution. The spotlight comes in elegant black and is made of robust aluminum, emphasizing its durability and high-quality workmanship.

Excellent Light Quality and Color Rendering

The light color of the spotlight is neutral white with a color temperature of 4000 Kelvin, providing pleasant and natural illumination. Particularly noteworthy is the high color rendering index of over 90 Ra, which makes colors appear very realistic and vibrant. Additionally, the color consistency according to the SDCM3 standard ensures a consistent color temperature across multiple luminaires, creating a harmonious overall effect.

Flexible Lighting Design Thanks to Adjustable Gobo Filter

A special feature of this spotlight is the integrated gobo filter, which allows various light patterns, including round, semi-round, square, narrow cuboid, triangle, and rhombus. These light shapes can be freely adjusted directly on the spotlight, making it easy to create individual accents and effects. The rotatable and tiltable lamp head also supports optimal alignment of the light beam.

Modern Control and Energy Efficiency

The contour spotlight is DALI dimmable and therefore ideal for modern building automation systems. The energy efficiency of the light source is demonstrated by its low consumption of 20 kWh per 1000 operating hours with a luminous efficacy of 27 lumens per watt. With an average lifespan of 50,000 hours, the spotlight offers long-lasting and reliable lighting with minimal maintenance effort.

Complete Accessories and Technical Details

Included in the scope of delivery, besides the spotlight itself, are a 3-phase adapter, a gobo, and a driver, enabling quick and uncomplicated installation. The operating voltage is 220-240 volts with a mains frequency of 50/60 Hz. With dimensions of 25.33 cm length, 6.71 cm width, and 26.17 cm height, the spotlight is compactly sized and weighs only 0.689 kg. Protection class 1 and protection rating IP20 ensure safe use under normal conditions.
