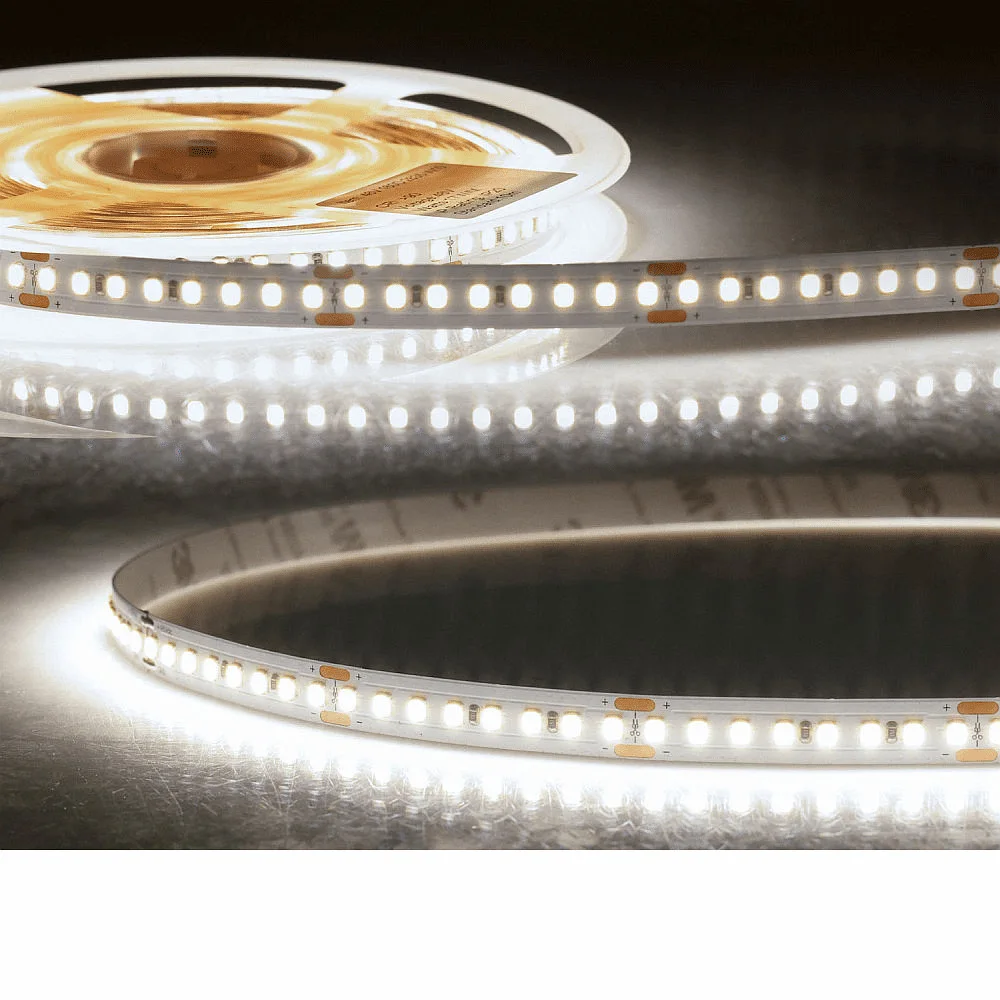

LED Strip HEQ940 HIGH BRIGHT 160LED/M 140LM/W 2-pole white

High-Performance LED Strip with Excellent Light Quality

The LED Strip HEQ930 HIGH BRIGHT from ISOLED impresses with its outstanding light quality and efficiency. With a color temperature of 4000K, it produces a pleasantly neutral white light that optimally illuminates rooms. The color rendering index of over 90Ra ensures that colors are reproduced naturally and brilliantly. Thanks to a luminous efficacy of 140 lumens per watt, this LED strip delivers a strong brightness of 2450 lumens per meter with an energy consumption of only 17 watts.

Technical Details for Easy Installation and Long Service Life

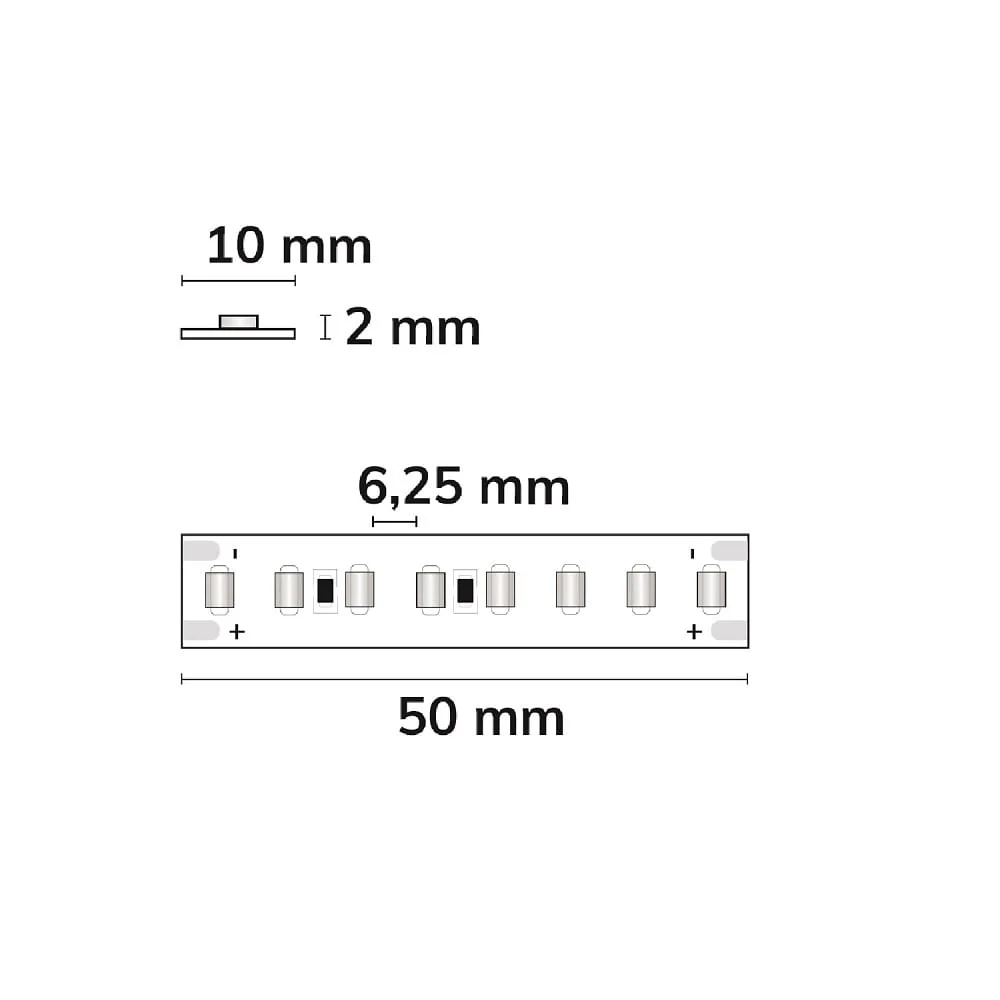

The LED strip is 10 meters long and can be cut every 5 cm, that is, after every 8 LEDs, to perfectly adapt to individual requirements. The operating voltage of 48 volts DC allows for longer supply lines with lower voltage drop compared to conventional 12 or 24 volt systems. The self-adhesive backside with high-quality 3M 300LSE tape significantly facilitates installation, and the double-sided pre-installed connection cables provide flexible wiring. A voltage-controlled LED driver with 48V DC is required for operation.

Flexibility Through Dimmable PWM Technology

The LED Strip HEQ930 is dimmable and uses pulse-width modulation (PWM), a technology that allows stepless and flicker-free brightness control. This way, the lighting can be individually adjusted to different needs and moods. The beam angle of 120° ensures even light distribution without harsh shadows or glare. Protection class 3 guarantees safe handling when used properly.

Durability and Reliability in Focus

With an average lifespan of up to 70,000 hours, the LED strip offers a long-lasting solution for permanent lighting projects. The LEDs are firmly installed and cannot be replaced, ensuring high operational safety. The LED strip is robustly constructed from plastic and copper, which provides good heat dissipation and thus further extends the service life. The maximum ambient temperature is +40°C, while the strip also operates reliably at temperatures down to -20°C.

Versatile Accessories and Easy Mounting Options

The delivery includes a connection cable and the self-adhesive backside, enabling uncomplicated installation. Optionally, the LED strip can be complemented with corresponding accessories such as profiles, covers, connectors, or dimmers to meet individual requirements. Installation can be done as recessed or surface-mounted, with various accessories increasing flexibility. The LED strip is lightweight at only 0.12 kg and measures 1000 x 1 x 0.2 cm, allowing it to be integrated discreetly and space-saving.
