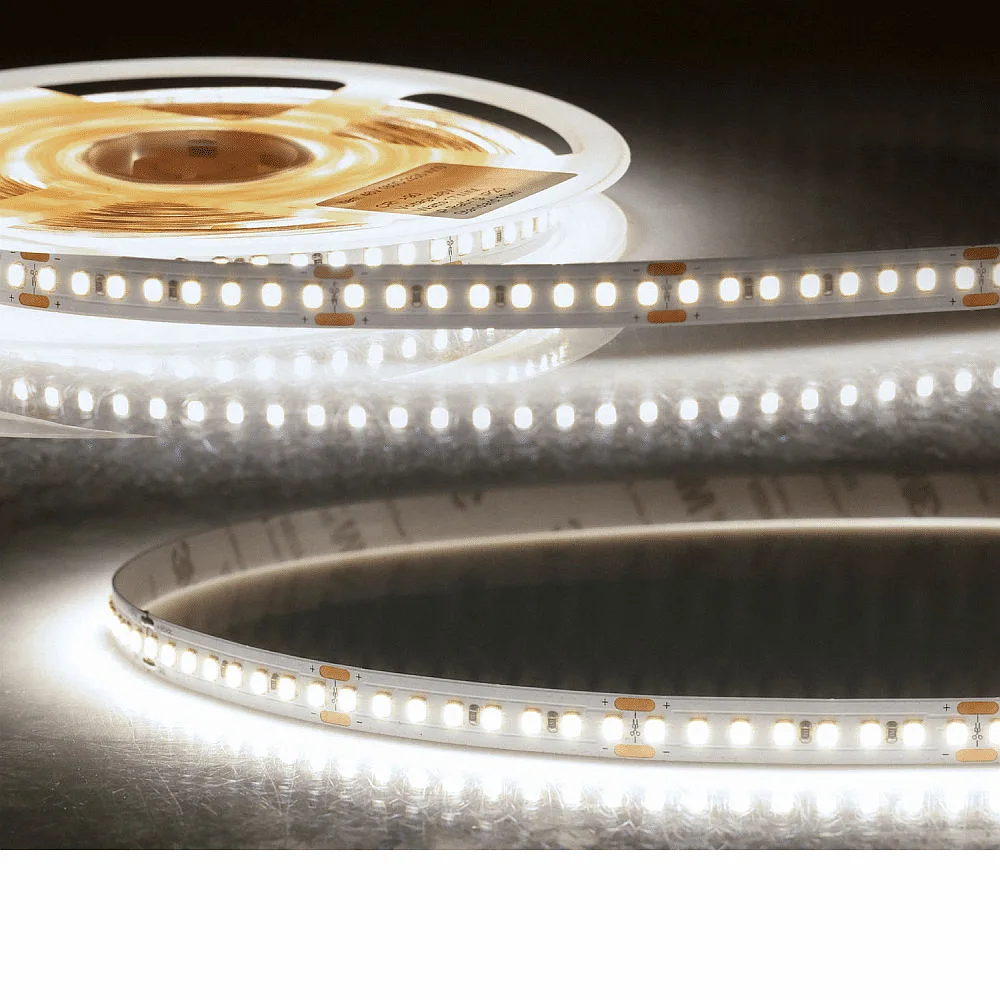

LED Strip HEQ940 HIGH BRIGHT 240LED/M 140LM/W 2-pole white

Highly Efficient LED Strip with High Brightness

The LED Strip HEQ927 HIGH BRIGHT from ISOLED impresses with its remarkable performance and efficiency. With 240 LEDs per meter and a power consumption of 22 watts per meter, it produces a luminous flux of 2450 lumens, corresponding to a luminous efficacy of 140 lumens per watt. The operating voltage of 48 volts DC allows for longer supply lines with low voltage drop and low current flow, ensuring stable and energy-efficient lighting. The self-adhesive backing allows for easy and secure installation.

Excellent Light Quality and Color Rendering

The LED strip provides a neutral white light color with a color temperature of 4000 Kelvin, ensuring pleasant and natural illumination. Particularly noteworthy is the high color rendering index of over 90 Ra, which reproduces colors very realistically and vividly. The light distribution is direct with a beam angle of 120 degrees, ensuring even illumination. The LEDs are firmly installed and non-replaceable, underscoring the product’s durability and maintenance-free operation.

Durability and Robust Materials

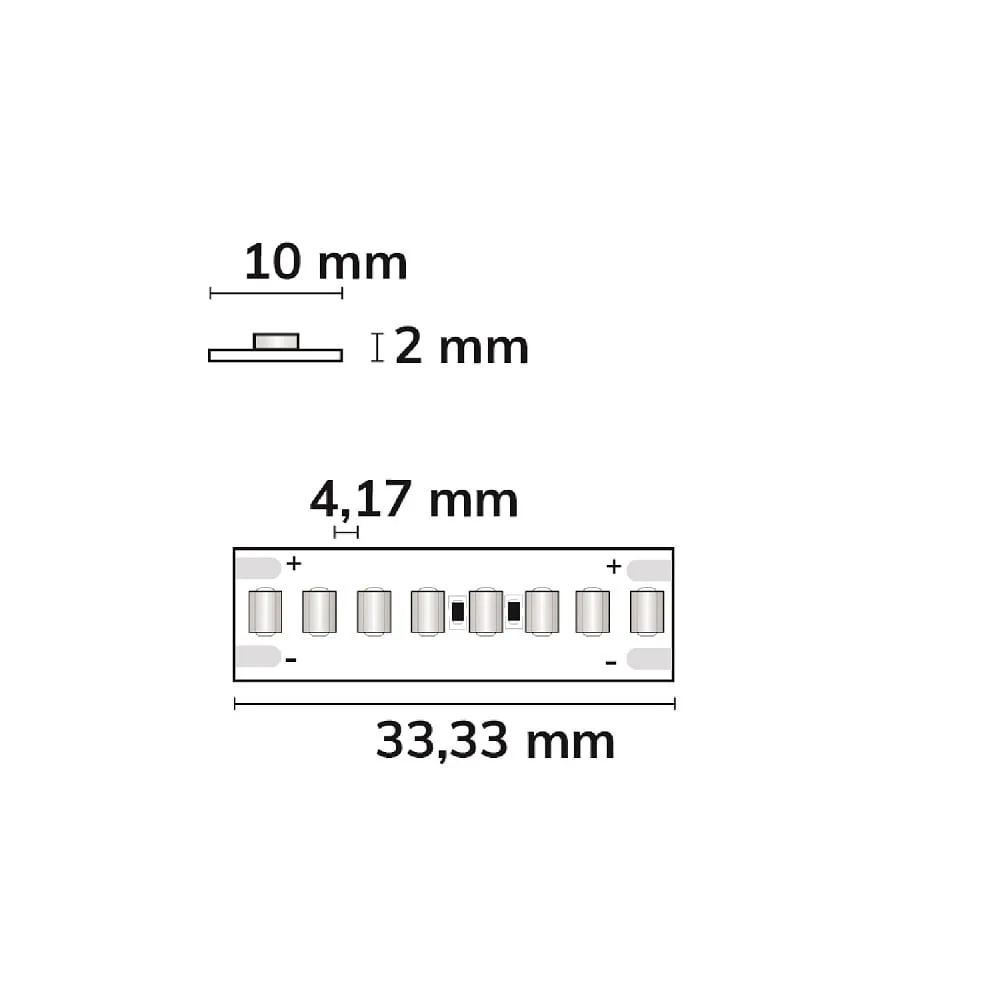

The LED strip is made of high-quality plastic and copper and offers an average lifespan of up to 70,000 hours. The high switching endurance of 100,000 switching cycles guarantees long and reliable use. Protection class 3 as well as an ambient temperature suitability from -20 to +40 degrees Celsius ensure that the strip operates reliably in many applications. The cut points are located every 3.33 cm, allowing the strip to be flexibly cut to the desired length.

Flexibility in Installation and Connection

The LED strip can be installed in various ways, whether as a recessed or surface-mounted variant, supported by the supplied self-adhesive backing (3M 300LSE adhesive tape). For connection, pre-installed cables are available on both ends, facilitating wiring. Connection is made by soldering or with suitable connectors from the K2-210 / K3-210 multi group. Up to 10 meters can be operated per power feed, simplifying installation in larger areas.

Accessories and Compatibility

The delivery includes connection cables and the self-adhesive backing, making the start of installation easier. Covers, dimmers, profiles, connectors, and drivers are available separately and allow individual adaptation to different requirements. The LED strip is dimmable via PWM (pulse-width modulation), enabling flexible light control. The product is available in various lengths, light colors, and power levels, so the right solution can be found for every application.
